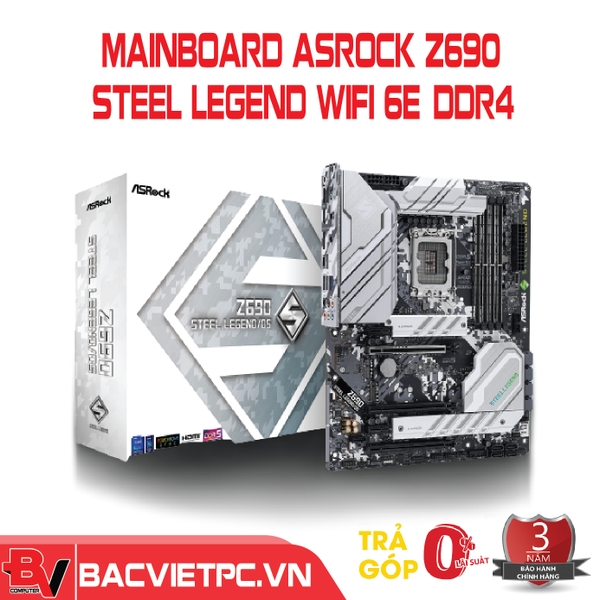

Mainboard ASROCK Z690 STEEL LEGEND WiFi 6E (Intel Z690, Socket 1700, ATX, 4 khe Ram DDR4)

Mã sản phẩm: BVMAR311
So sánh
7.688.000₫ 8.390.000₫
-8%
(Tiết kiệm: 702.000₫)

Mainboard ASROCK Z690 STEEL LEGEND WiFi 6E (Intel Z690, Socket 1700, ATX, 4 khe Ram DDR4) KHUYẾN MÃI - ƯU ĐÃI

  • Nhập mã BVCPT thêm 5% đơn hàng [coupon="EGANY"]
  • Giảm giá 10% khi mua từ 5 sản phẩm
  • Tặng phiếu mua hàng khi mua từ 500k

Thông Số Kỹ Thuật

  • Socket: LGA1700 hỗ trợ CPU intel thế hệ 12
  • Kích thước: ATX
  • Khe cắm RAM: 4 khe, tối đa 128GB
  • Khe cắm mở rộng: 3 x PCIe x16 Slots, 2 x PCIe Gen3x1 Slots, 1 x M.2 Socket
  • Khe cắm ổ cứng: 8 x SATA3 6.0 Gb/s, 1 x Hyper M.2 Socket, 1 x Ultra M.2 Socket, 1 x Hyper M.2 Socket

Gọi đặt mua 1800.0000 (7:30 - 22:00)

NHẬP MÃ: BV50

Giảm 50% cho đơn hàng giá trị tối thiểu 500K. Mã giảm tối đa 300K
Điều kiện
- Giá trị đơn hàng tối thiểu 250k.
- Mỗi khách hàng được sử dụng tối đa 1 lần.

NHẬP MÃ: BV15

Giảm 15% cho đơn hàng giá trị tối thiểu 500k. Mã giảm tối đa 250K
Điều kiện
- Đơn hàng giá trị tối thiểu 500k.
- Chỉ áp dụng 1 mã giảm giá trên một đơn hàng.

NHẬP MÃ: BV99K

Mã giảm 99k cho đơn hàng tối thiểu 1 triệu. Tối đa 1 mã giảm giá/đơn hàng.
Điều kiện
- Đơn hàng từ 1000K.
- Chỉ áp dụng 1 mã giảm giá trên một đơn hàng.

NHẬP MÃ: FREESHIP

Miễn phí vận chuyển cho đơn hàng từ 500k. Áp dụng cho khu vực Tp.HCM
Điều kiện
- Đơn hàng từ 500K
- Áp dụng cho khu vực Tp.HCM
  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
    Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
  • Đổi trả miễn phí trong 30 ngày
    Đổi trả miễn phí trong 30 ngày

ĐẶC ĐIỂM NỔI BẬT

Đánh giá Mainboard ASROCK Z690 STEEL LEGEND WiFi 6E (Intel Z690, Socket 1700, ATX, 4 khe Ram DDR4)
ASROCK Z690 STEEL LEGEND WiFi 6E là phiên bản bo mạch chủ Z690 cao cấp của ASROCK sở hữu trang bị và thiết kế vô cùng bắt mắt. Đây là một trong những dòng bo mạch chủ có hiệu năng trên giá thành rất tốt.

Thiết kế

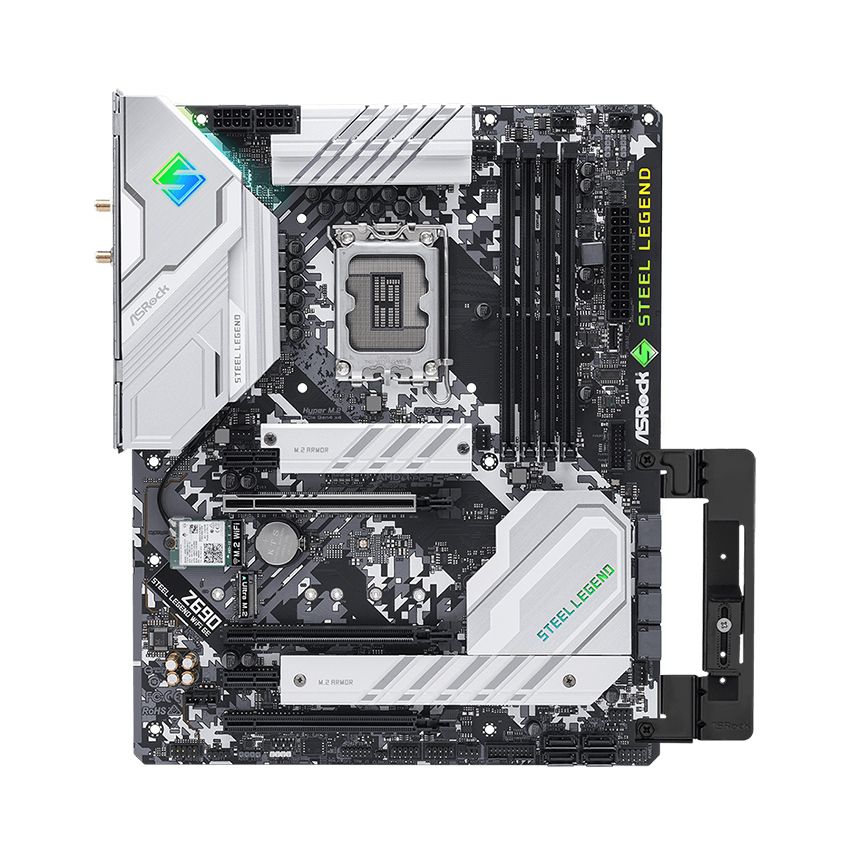

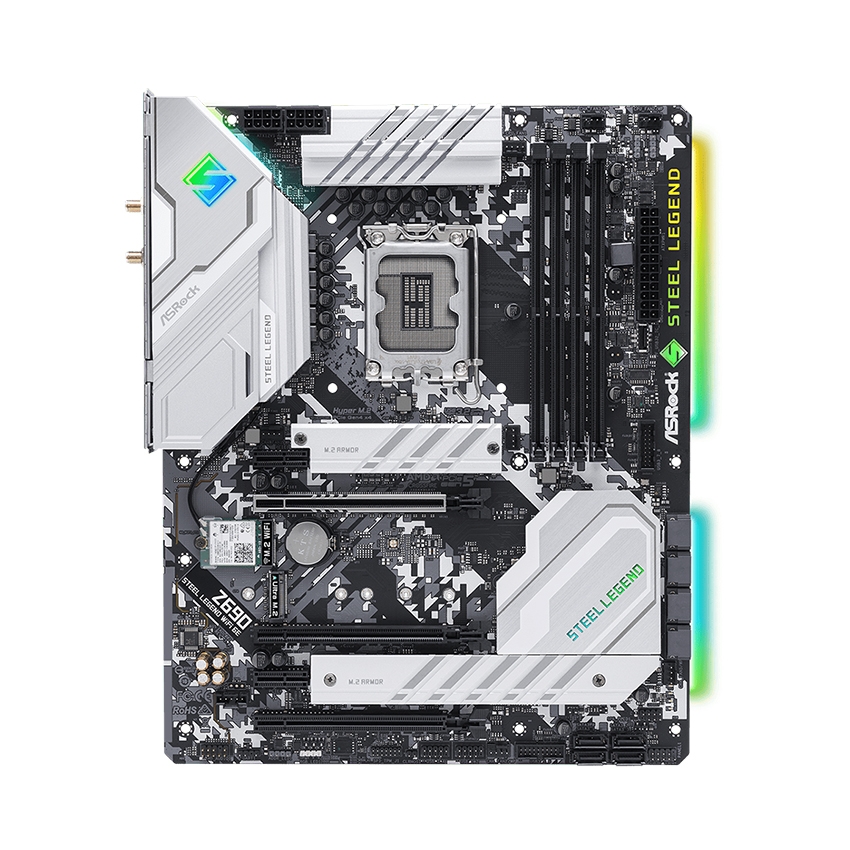

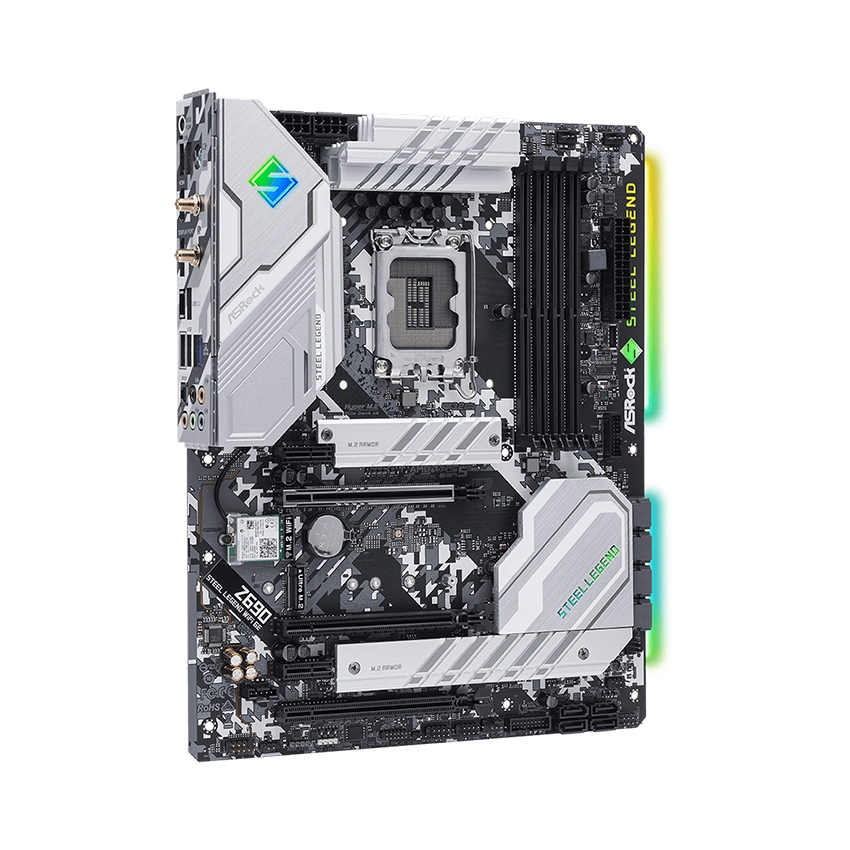

  • Mainboard ASROCK Z690 STEEL LEGEND WiFi 6E sở hữu thiết kế ATX với ngoại hình đậm chất Gaming với các khối heatsink cách điệu hình bánh răng đẹp mắt bao phủ ở các khu vực quan trọng trên bo mạch chủ.
  • Phần PCB được cấu thành từ nhiều lớp với rất nhiều đồng (Cu) - giúp truyền dẫn tín hiệu và hỗ trợ khả năng tản nhiệt cho các linh kiện.
  • Khe RAM, khe PCI-E đều được bọc thép gia cường, tăng độ bền và sự cao cấp cho sản phẩm

Trang bị

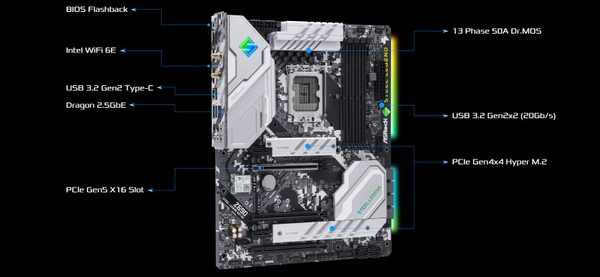

Là bo mạch chủ cao cấp,  ASROCK Z690 STEEL LEGEND được trang bị đầy đủ các tính năng hiện đại nhất:

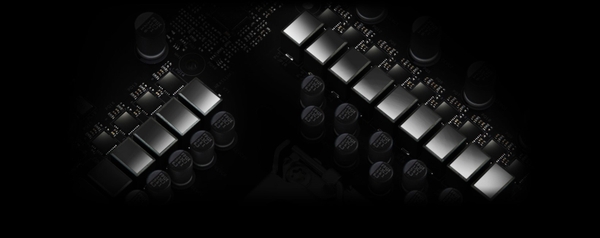

  • 13 phase nguồn cấp điện cho CPU (Dr.Mos): Đảm bảo cho mọi nhu cầu của người dùng từ cơ bản đến Overclocking các CPU đa nhân mạnh nhất.
  • 3 khe M.2 PCI-e Gen 4
  • USB Type C Gen 2, Lan 2.5G
  • 4 khe RAM DDR4: Tối đa 128GB

Tính năng

  • Mainboard ASROCK Z690 STEEL LEGEND WiFi 6E sở hữu hệ thống chân cắm ARGB cho phép chủ nhân điều khiển đến từng bóng LED của bất kỳ thiết bị kết nối nào có hỗ trợ qua phần mềm Polychrome của ASROCK

  • Công nghệ âm thanh Nahimic Audio by Steelseries cho âm thanh sống động cùng linh kiện chuyên dụng cho âm thanh chất lượng tốt nhất trong ngành

Thông Số Kỹ Thuật
Unique Feature ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
2.5G LAN 802.11ax Wi-Fi 6E
ASRock Auto Driver Installer
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU - Supports 12th Gen Intel® Core™ Processors (LGA1700)
- Digi Power design
- 13 Power Phase design
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset Intel® Z690
Memory - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics - Intel® Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots - 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))*
- 2 x PCIe Gen3x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Storage

- 8 x SATA3 6.0 Gb/s Connectors*
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode**

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Connector

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

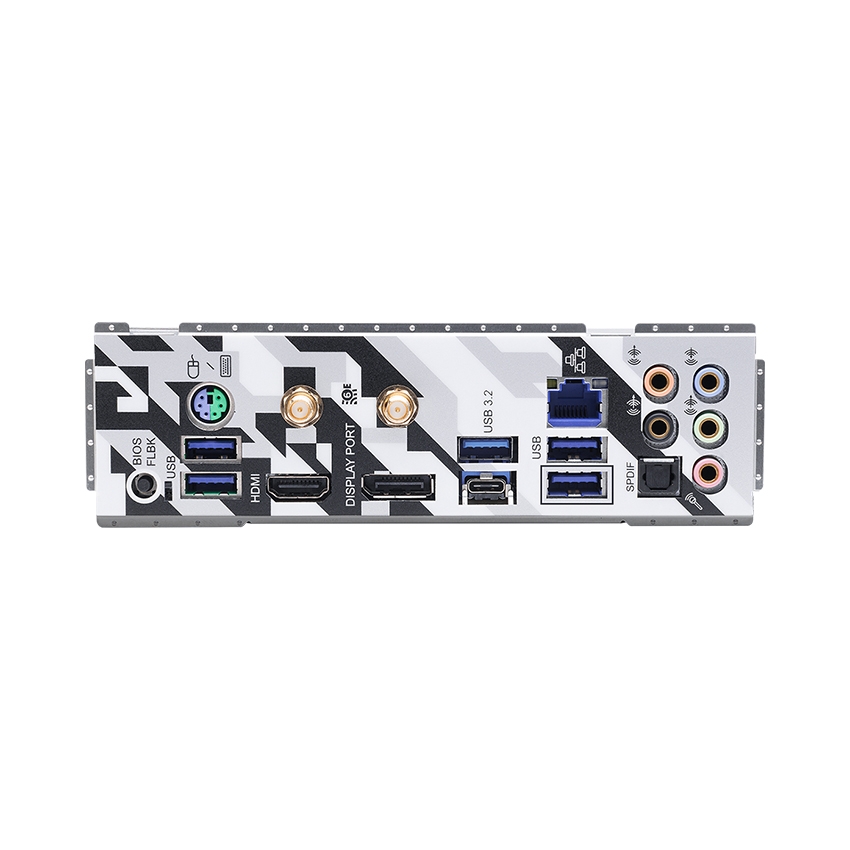

Rear Panel I/O

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

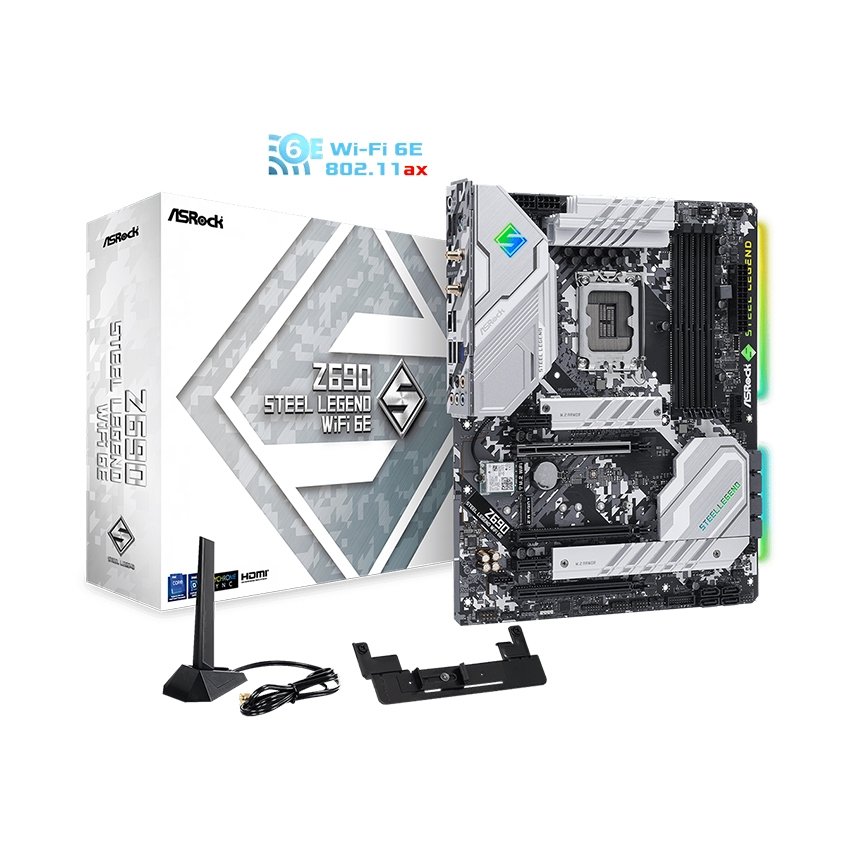

Accessories - Quick Installation Guide, Support CD
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 3 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
- 1 x Graphics Card Holder
Hardware Monitor - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, VCCSA, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
OS Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- CEC Tier II ready
